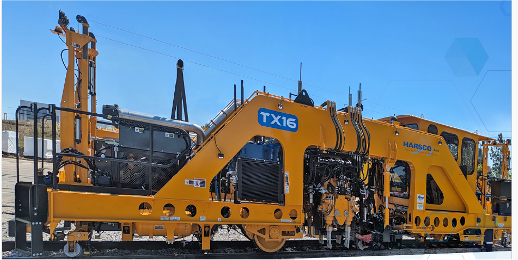

TX16 Production / Switch Tamper

Increased productivity from start-up to shut down – TX16 speeds up every aspect of the work day, safely. Cab deployable/stowable reference, integrated high-speed measurement, automated tamping, and hybrid index, combine to significantly increase overall productivity.

The TX16 leverages Harsco Rail’s multi-generational product, technology, and service experience – safely delivering high production and accurate track correction within a reliable and versatile tamper.

Performance:

PERFORMANCE:

  • Setup / Deploy
    • Cab deployable reference (2 – 3 minutes) vs. 20 minutes, operator on track to deploy
  • Record
    • Integrated, high speed, non-contact measurement (up to 30 mph / 48 kph) vs. 5 mph / 8 kph
  • Work
    • Hybrid index, automatic tie finding, switch visibility (32 ties/minute [1000 m/hr]) vs. 22 ties/minute (715 m/hr), traditional 16-tool tamper
  • Stow / Travel
    • In-cab stow, clear view for forward travel (2 – 3 minutes) vs. 20 minutes, operator on track to stow
  • Perimeter Lighting
  • External Emergency Stops
  • In-Cab Toolbox Package
  • Tow Bar and Storage Package
  • Window Blind Package
  • Hydraulic Top-up Pump
  • Drive Axle Rail Sweep
  • Insulation Bypass

INNOVATIONS:

  • Callisto Protamp with direct Jupiter integration
  • Cab deployable/stowable reference
  • Hybrid Index
  • Automated tamping cycle
  • Half-split tamping heads
  • Forward-mounted cab

Key Specifications:

Length
588 inches / 14,935 mm

Width
126 inches / 3,200 mm

Height
147 inches /3,734 mm

Weight
91,000 pounds / 41,277 kg

Wheelbase
335 inches / 8,509 mm

Tamping Units
4 pair, half-split carbide tipped, positive displacement

Max Travel Speed
30 mph / 48 kmh (12 mph / 19kph)

Maximum Grade
12% in low gear, 4% in high gear

Minimum Curve
25 degrees (travel), 18 degrees (working)

Superelevation
6 in / 152 mm (maximum working)

Productivity
32 ties/minute or 1,000 meters/hour
